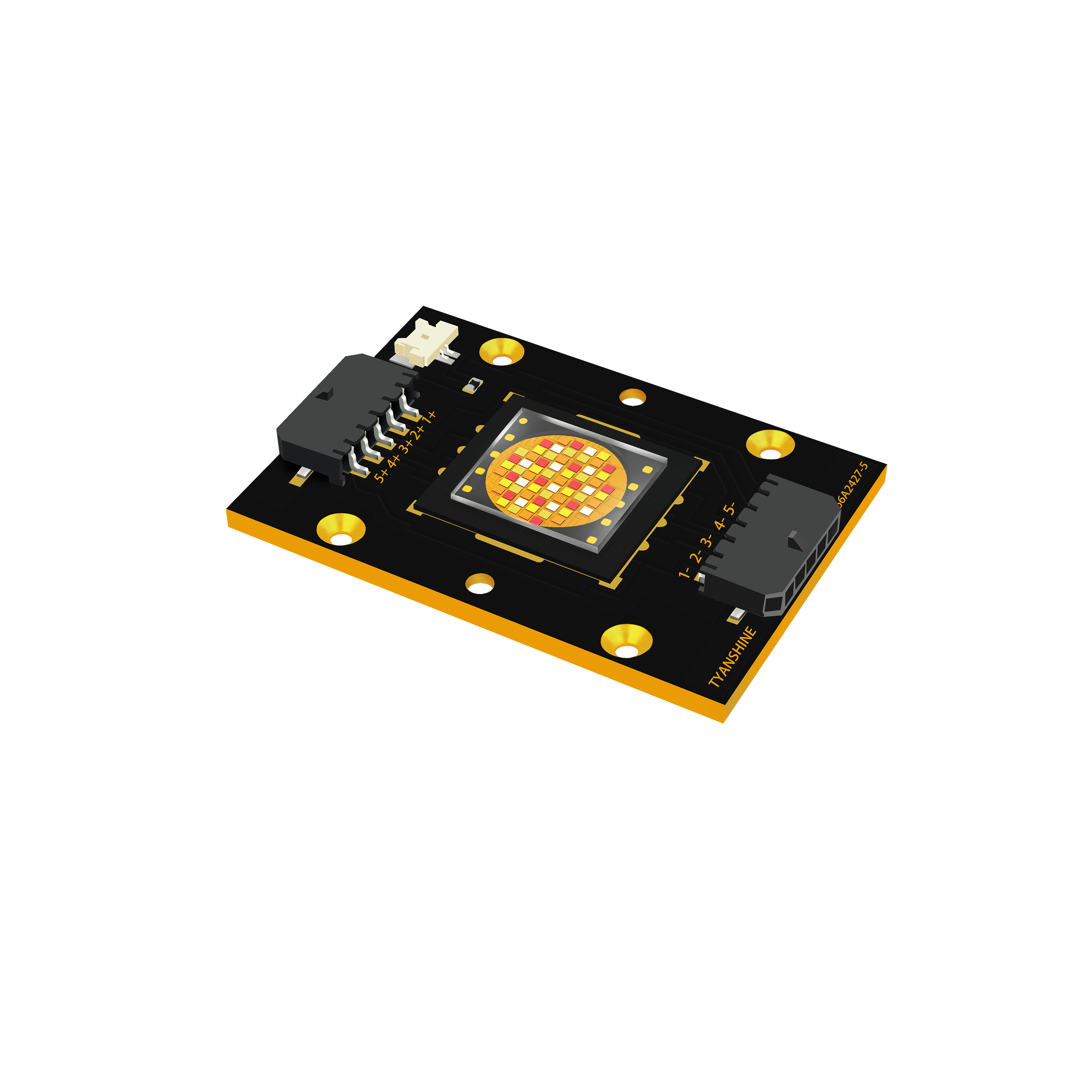

    4566RGBLA 300W RGB+Lemon+PC Amber LED module

    Home Products Product Center

    Product Features

    Compact LES with high light density, upto 5W/mm²
    Latest advanced phosphor technology, high color consistency
    Thermal-electric isolation copper substrate, safe & stable
    Intersecting distribution of 5 colors, optimized color-mixing

    Application Area

    Entertainment lighting
    Architectural lighting
    Medical illumination, Fiber Optics
    Event lighting
    Stage lighting Projection
    RoHS REACH
    Typ. Spec
    Color DWL(nm) Lumen(lm) IF=1500mA Current(mA) Voltage(V) Thermal Resistance(K/W)
    Red 618-628 1900-2200 1800 33-35 0.21
    Green 520-530 2700-3200 1800 36-38 0.26
    Blue 450-460 550-650 2400 32-34 0.22
    Lemon 565-569 4000-5000 2000 42-44 0.17
    Amber 1840-1965K 2500-3000 2000 42-44 0.17
