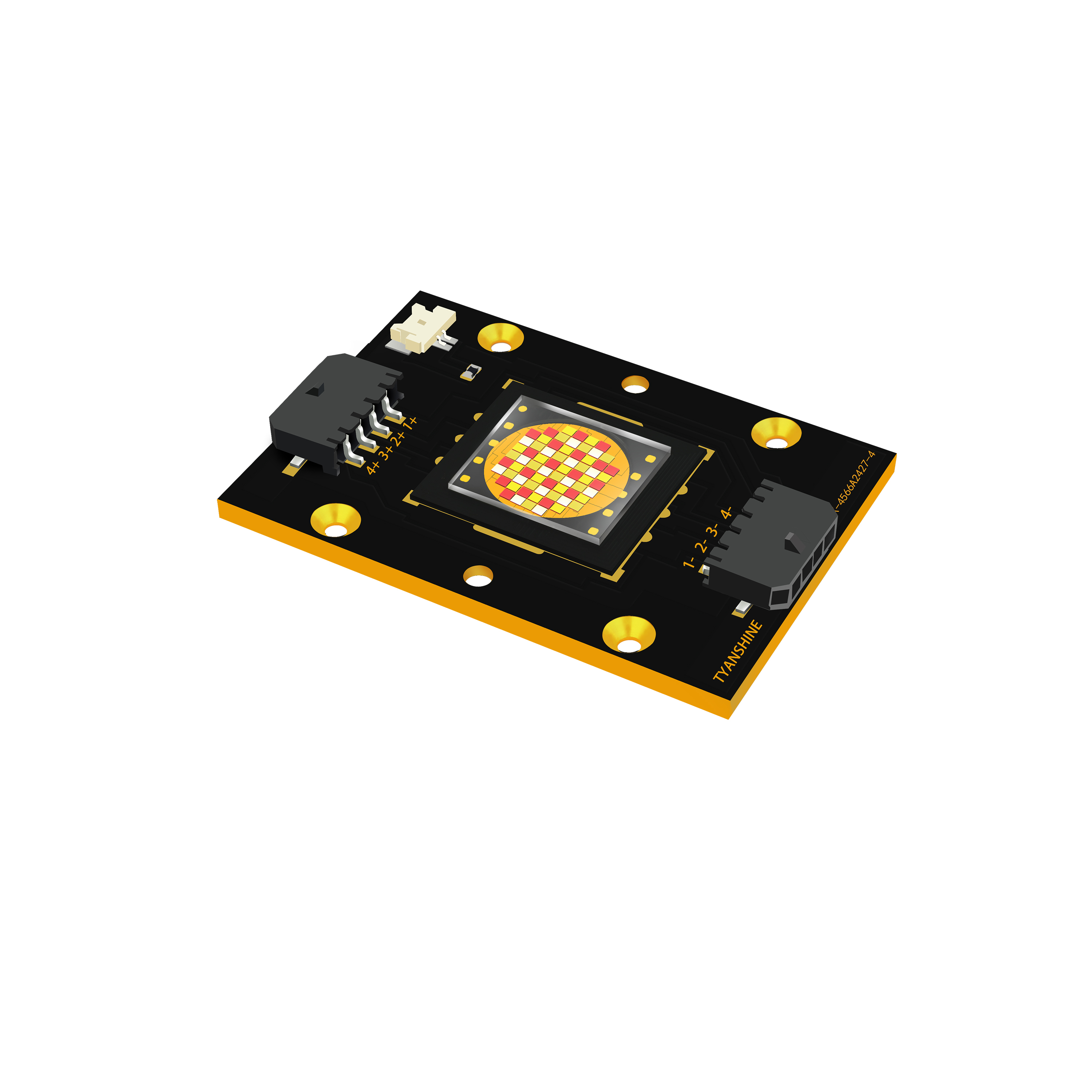

4566RGBW 400W RGBW LED module






  Home Products Product Center




































Product Features



                  Compact LES with high light density, upto 5W/mm²


Latest advanced phosphor technology, high color consistency


Thermal-electric isolation copper substrate, safe & stable


Intersecting distribution of 4 colors, optimized color-mixing













Application Area



                  Entertainment lighting

Architectural lighting

Medical illumination, Fiber Optics

Event lighting

Stage lighting Projection
















	RoHS REACH




	Typ. Spec










					Color


					DWL(nm)


					Lumen(lm) IF=1500mA


					Current(mA)


					Voltage(V)


					Thermal Resistance(K/W)






					Red


					618-628


					2000-2300


					1800


					47-50


					0.15






					Green


					520-530


					4200-4600


					1800


					53-55


					0.18






					Blue


					450-460


					850-1050


					2400


					47-50


					0.15






					White


					6500-6800K


					5400-6400


					2400


					47-50


					0.15
