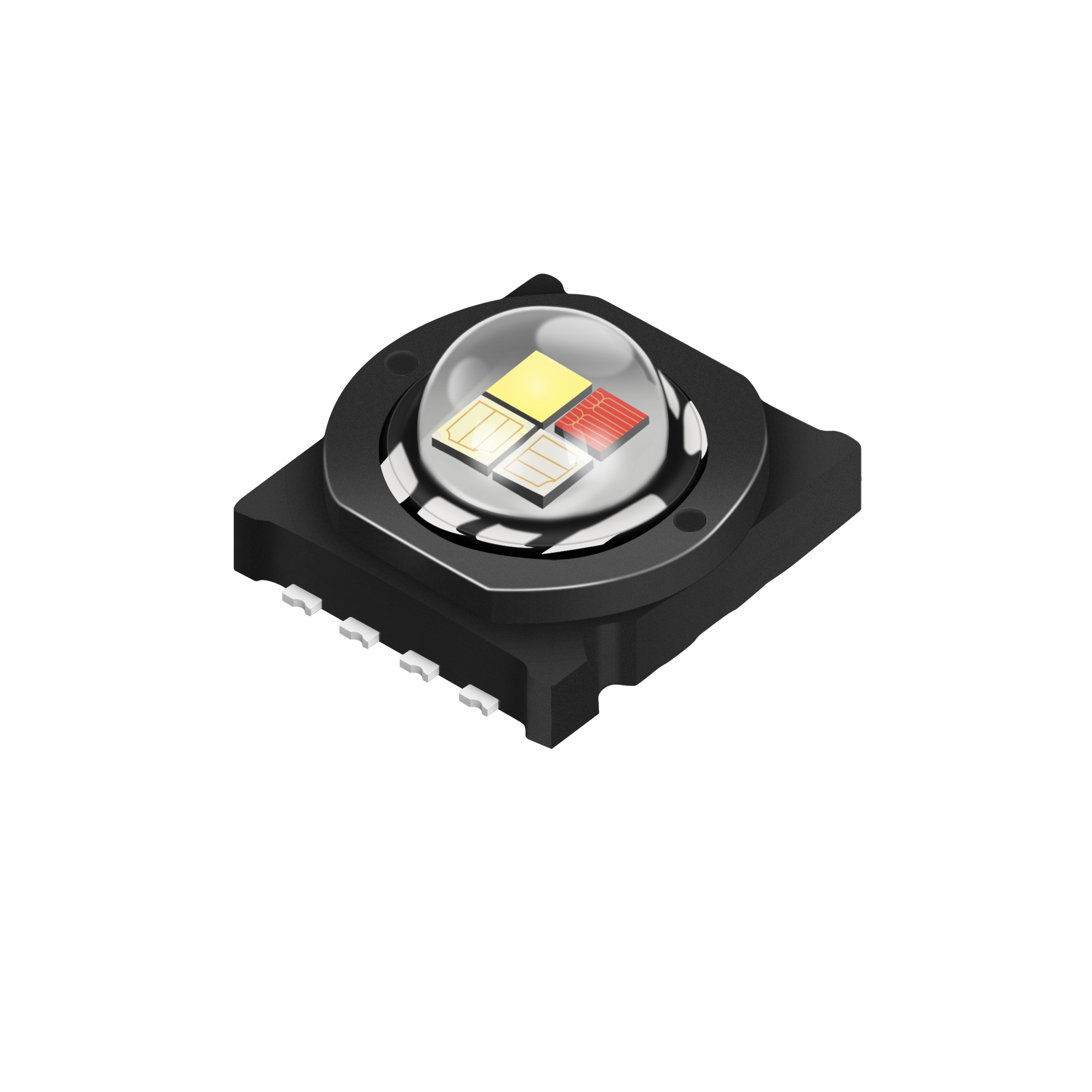

    TX-RBWG 15W EMITTER LED diode

    Home Products Product Center

    Product Features

    · Compact latout of LES, small gab between the chips
    · High stability structure · Central symmetry of LED chips, high quality of color-mixing
    · High heat conductivity materials, lower thermal resistance

    Application Area

    Stage lighting, LED Par lights, LED Moving-head lights
    Entertainment lighting
    Architectural lighting
    Landscape lighting
    RoHS REACH
    Typ. Spec 15W
    Color DWL(nm) Lumen(lm) Current(mA) Voltage(V) Thermal Resistance(K/W)
    Red 620-625 155-195 1000 2.5-2.6 4.8
    Blue 450-460 25-40 1000 3.4-3.6 4.2
    White 6000-7500K 260-320 1000 3-3.6 3.8
    Green 520-530 240-300 1000 3-3.6 4.2
