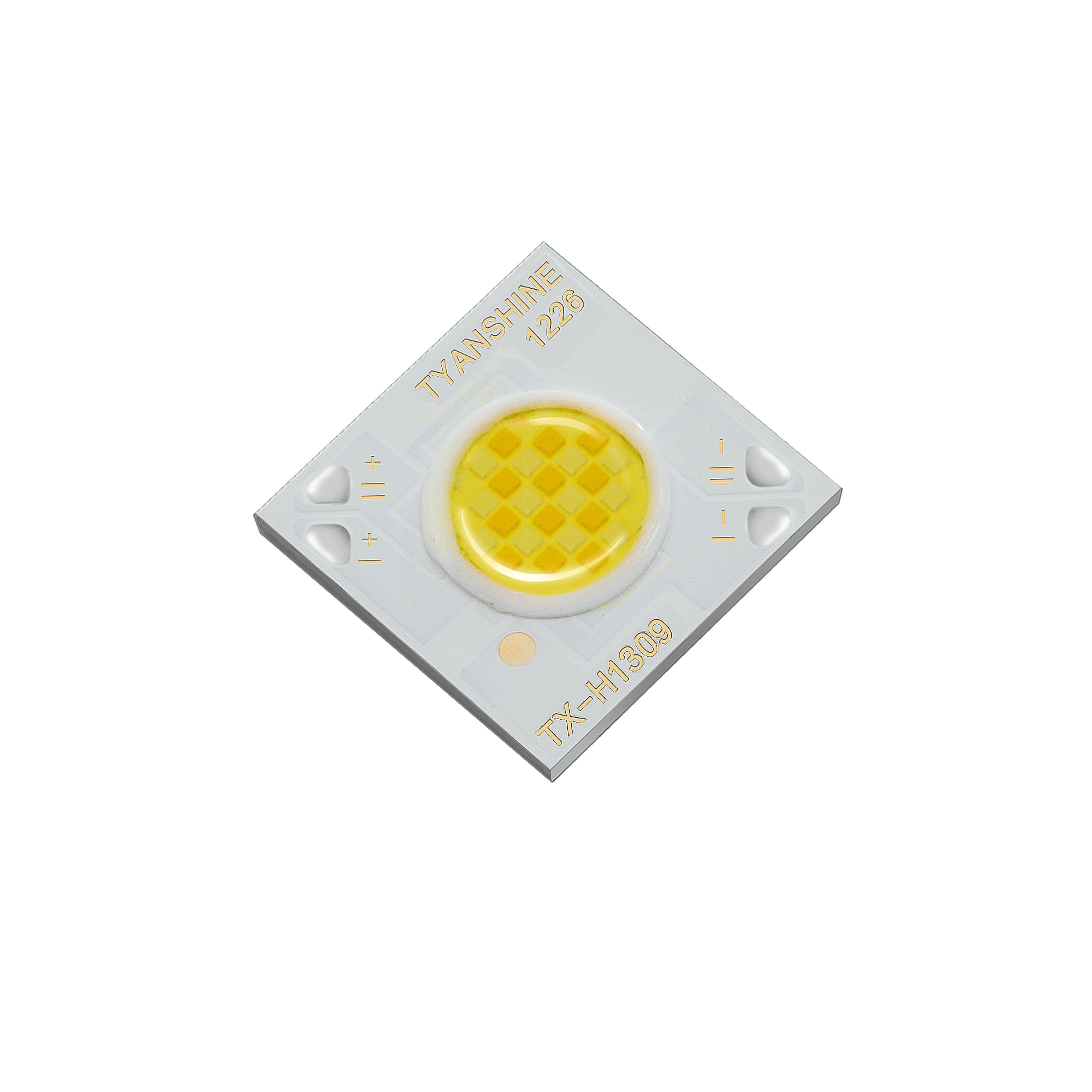

    TX-H1309

    Home Products New Product Release

    Product Features

    · Double phosphor coating technology, excellent color-mixing
    · Mac-Adam ellipse 3 step binning, high color consistency
    · High light quality, anti-glare
    · Fast thermal conductivity substrate, lower resistance
    · Compatible cob pkg size

    Application Area

    Commercial lighting
    Hotel lighting
    Museum lighting
    RoHS REACH
    Characteristics Unit Typical MAXIMUM
    Viewing Angle(FWHM) degree 115
    DC Forward Current mA 250 450
    Forward Voltag V 34 36
    Thermal Resistance K/W 1.62
    Typ. Spec
    CCT(K) Lumen(Lm) Ra Current(mA)
    I:2700 780-980 90 250
    II:5700 900-1200 90 250
    I:2700 650-850 95 250
    II:5700 800-1000 95 250
