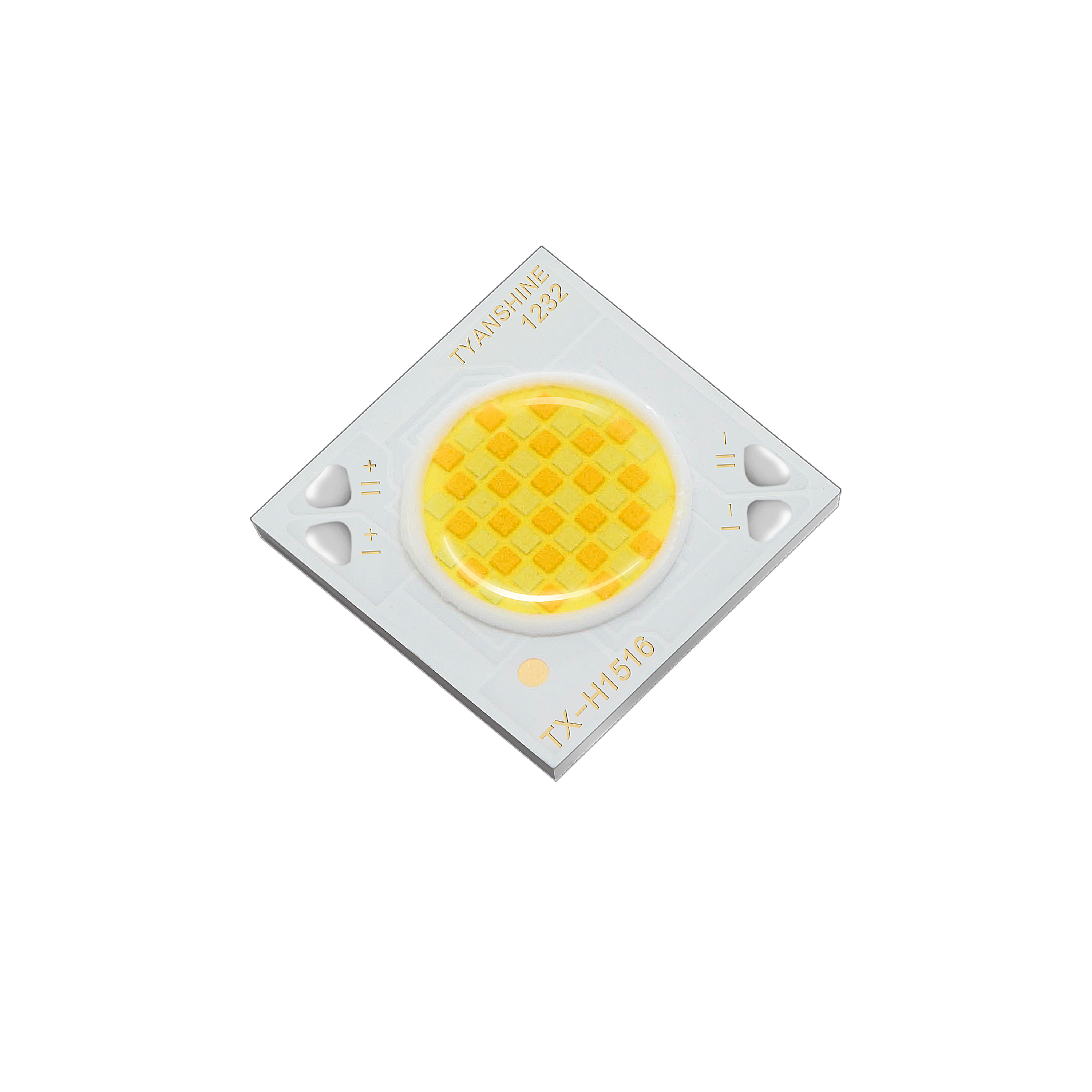

TX-H1516

Home Products New Product Release

Product Features

· Double phosphor coating technology, excellent color-mixing
· Mac-Adam ellipse 3 step binning, high color consistency
· High light quality, anti-glare
· Fast thermal conductivity substrate, lower resistance
· Compatible COB PKG size,

Application Area

Commercial lighting
Museum / Art exhibition professional lighting
Indoor lighting
RoHS REACH
Characteristics Unit Typical MAXIMUM
Viewing Angle(FWHM) degree 115
DC Forward Current mA 500 800
Forward Voltag V 34 36
Thermal Resistance K/W 0.41
Typ. Spec
CCT(K) Lumen(Lm) Ra Current(mA)
I:2700 1450-1800 90 500
II:5700 1800-2300 90 500
I:2700 1250-1550 95 500
II:5700 1650-2050 95 500
